INSONO AF3

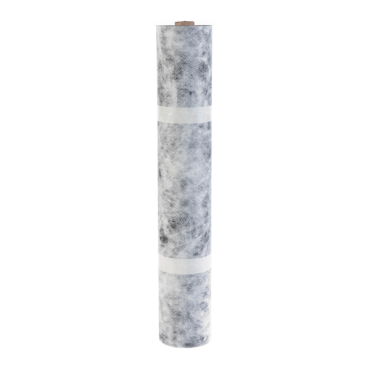

INSONO AF3 self-adhesive membranes are composed of polymer-modified bitumen and an exposed nonwoven polyester reinforcement. The self-adhesive underface of the membrane is protected by a silicone release film to allow quick and easy installation.
Benefits
- Non-woven polyester reinforcement on the surface allowing direct application and optimum adhesion of a polymer-modified mortar
- Compatible with many types of substrates such as concrete and plywood
- Resists traffic
Properties
Function
Soundproofing
Product Roles
Soundproofing
Building Component
Indoor Applications
Characteristics
Surface
Polyester reinforcement
Underface
Silicone release film
Instructions
Restrictions
For installations where waterproofing is required, waterproofing strips, such as REDZONE 25, must be installed before INSONO AF3 membrane.
Conditioning
Products
Product code
Width
Length
Gross area
Weight
INSONO AF3-47
Product code
12050
Width
1 m (39 in)
Length
16.76 m (55 ft)
Gross area
16.76 m² (178.8 ft²)
Weight
17 kg (37 lb)
With box
INSONO AF3-90
Product code
00328
Width
0.91 m (36 in)
Length
15 m (49 ft)
Gross area
13.65 m² (147 ft²)
Weight
32.4 kg (71 lb)
With box
INSONO AF3-130
Product code
00572
Width
0.91 m (36 in)
Length
8 m (26 ft)
Gross area
7.28 m² (78 ft²)
Weight
26 kg (57 lb)
With box
Palletization
Products
Barcodes
Product code
Units per box
Boxes per skid
INSONO AF3-47
Barcodes
Product code
12050
Units per box
1
Boxes per skid
25
INSONO AF3-90
Barcodes
Product code
00328
Units per box
1
Boxes per skid
16
INSONO AF3-130
Barcodes
8 86442 00572 4
Product code
00572
Units per box
1
Boxes per skid
25
